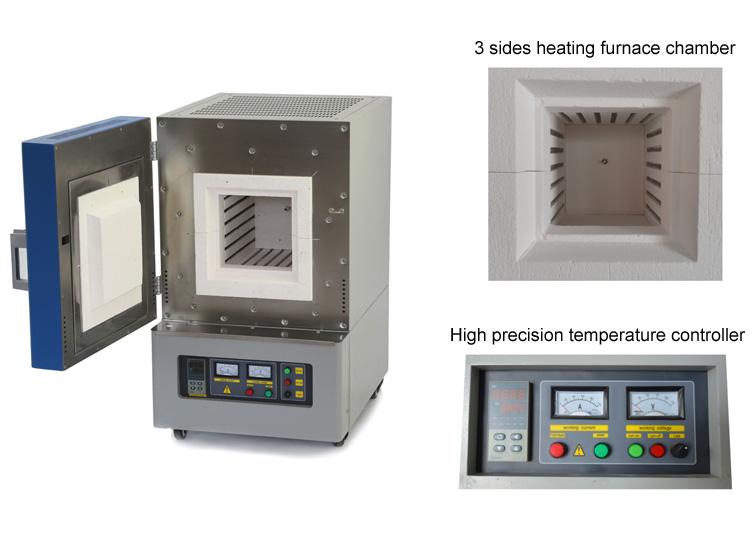

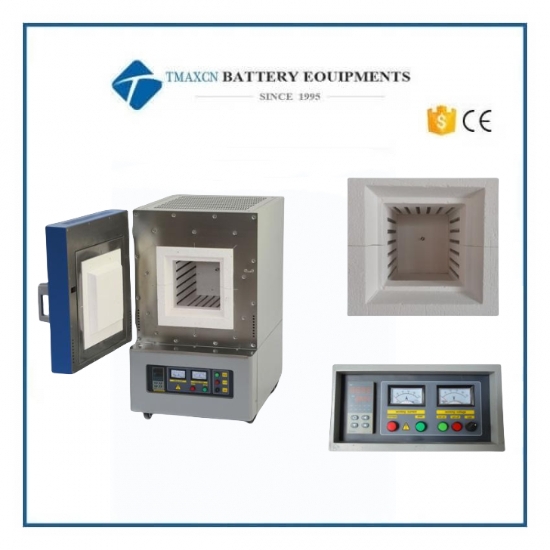

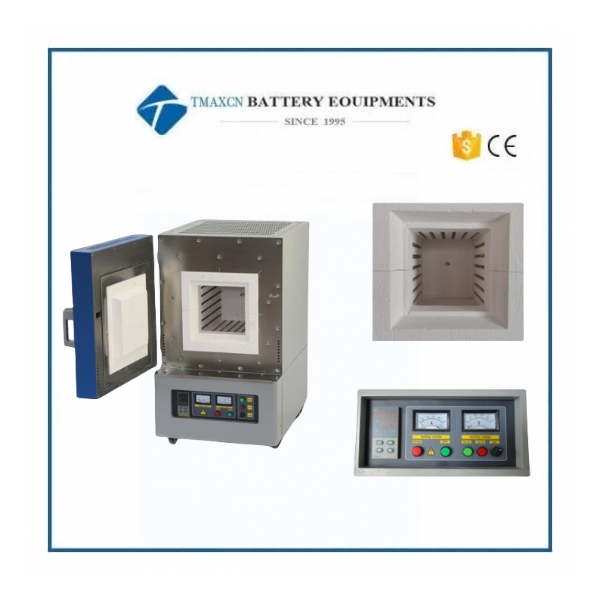

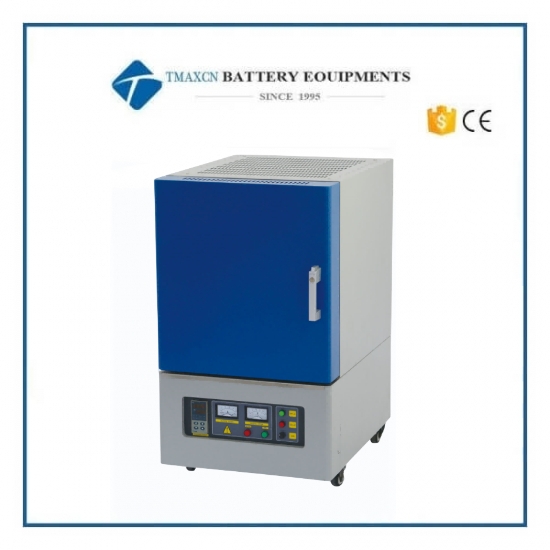

1200C Tube Box Muffle Furnace with A Tube on The Top of The Furnace
Model Number:
TMAX-SX2-2-12TPCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportShipping Port:
XiamenPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab 1200C Muffle Alumina Ceramic Fiber Furnace with Temperature ControllingNext:
Small 1000C Electric Box Muffle Furnace
1200C Tube Box Muffle Furnace with A Tube on The Top of The Furnace
Main parameter |
PN: SX2-2-12TP Max.Temp: 1200C Working temperature:0-1100C Chamber size:D200*W150*H150mm 2kw Voltage: 220V single phase Heating rate:0~20 Degree/Min,suggest 15C/min Heating element:Resistance wire(Fe-Cr-Al alloy) Thermocouple:K type Temperature accuracy: ±1℃ Tube diameter: 100mm |
||
Special design |
The OD100MM tube be on the top of the box furnace |
||
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
||
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
||
Furnace Chamber material |
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
||
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
||
Furnace shell structure |
Electric furnace shell matrial is stainless steel materials,adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
||
Sealing way |
Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing |
||
Temperature controlling
|
Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
||
Temperature control security |
The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
||
Warranty |
One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
||
Certificates: CE,SGS,ISO&UL |
|
||
Standard Package Accessories: |
|||
Electric Furnace |
1 set |
|
|
High temperature gloves |
1 pair |
|
|
Crucible clip |
1 pc |
|
|
Quartz tube |
1pcs |
|
|
Tube stopper |
1pcs |
|
|
Stainless steel flange |
1 set |
|
|
User manual |
1 book |
|
|
Door block |
1 pc |
