Microwave Tube Furnace

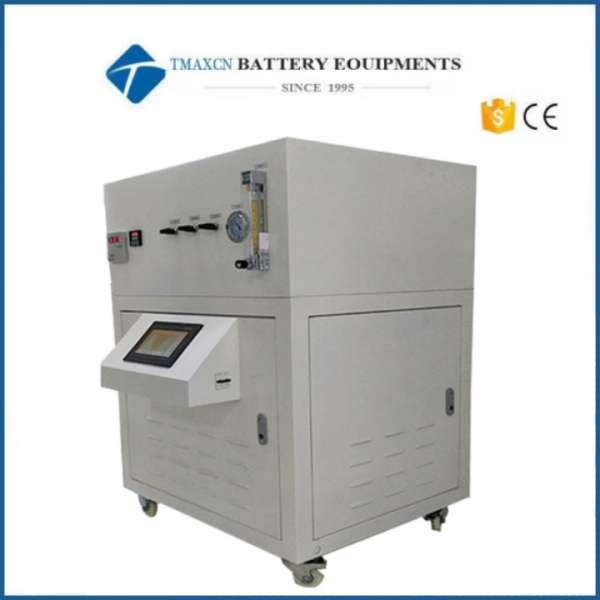

1200C Multi-functional Microwave Vertical Tube Furnace with Programmable Logic Controller

  • Model Number:

    TMAX-HY-LZG

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details


1200C Multi-functional Microwave Vertical Tube Furnace with Programmable Logic Controller


Summarize

1200℃ microwave vertical tube furnace is a standardized multi-functional microwave vertical atmosphere tube furnace, which is suitable for synthesis, roasting, heat treatment and sintering technology research under various atmosphere conditions, especially for various gas-solid phase/gas phase reaction, synthesis reaction and decomposition reaction.



Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) The time of gas replacement can be greatly saved by using pre-vacuuming method.

3) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved;

4) Vertical structure, provide a variety of charging forms, more widely used.



Technical parameter

       Model

Parameter

HY-LZG1512

HY-LZG3012

Voltage

220±10V，50Hz

220±10V，50Hz

Microwave output power

0.01~1.40kW, continuously adjustable (Panasonic)

0.01~2.80kW, continuously adjustable (Panasonic)

Heating space (diameter x length)

φ40x130mm

φ60x140mm

Microwave frequency

2.45GHz

Operating temperature

<1200℃

Temperature measurement method

Thermocouple/infrared

Static limit vacuum

≤100Pa

Atmosphere system

Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc

Control mode

Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)

Control program

Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven

Anti-microwave leakage

Microwave leakage level <1mW/cm2

Safety protection

Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm

Main body (L x W x H)

About 700x550x900mm

About 800x600x1000mm



Consumables and optional accessories
