Main parameter

PN: SX2-3-12TP

Max.Temp: 1200C

Working temperature:0-1100C

Chamber size:D300*W200*H120mm(7.2L)

Power:3kw(subject to design)

voltage: 220V single phase

Heating rate:0~20  Degree/Min

Heating element:HRE Resistance wire(3 side heating)

Thermocouple：K type

Temperature accuracy: ±1℃

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

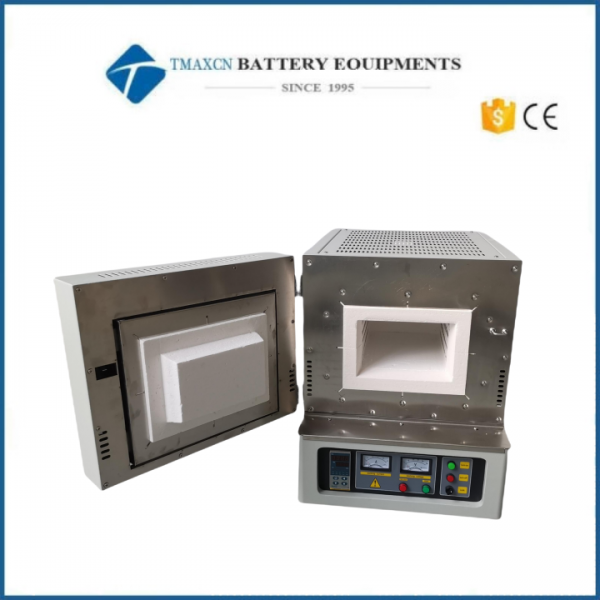

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

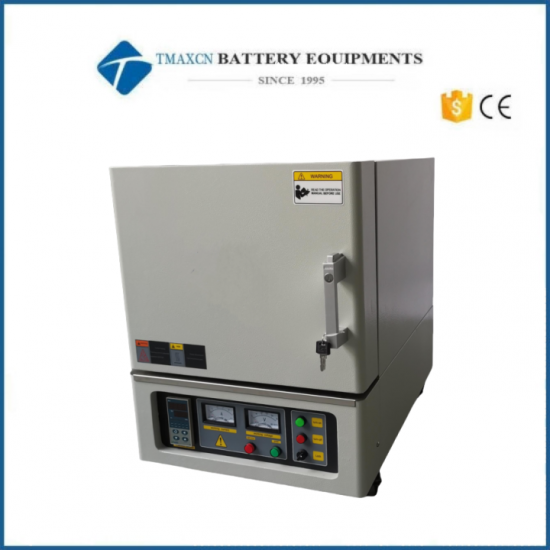

Furnace shell  structure

Electric furnace shell matrial is carbon materials,adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible clip

1 pc

User manual

1 book

Door block

1 pc
