Split Tube Furnace

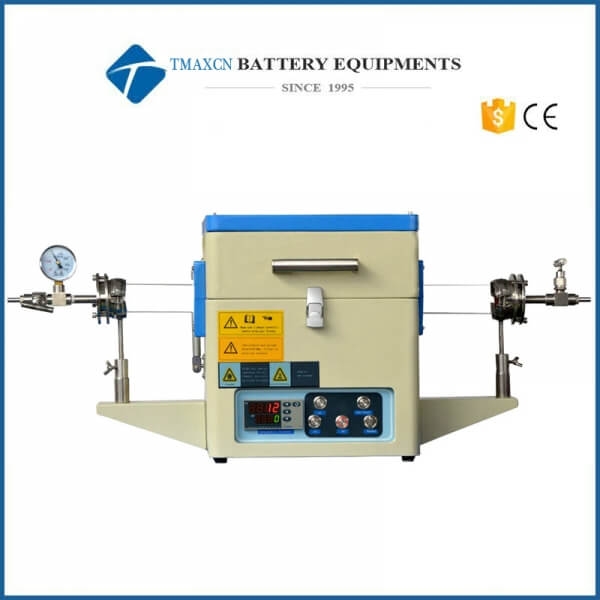

1200°C Single-Zone Split Tube Furnace with 50mm OD

  • Model Number:

    TMAX-50mmfurnace

  • Dimension(L*W*H):

    50mm OD x 700mm length

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details


1200°C Single-Zone Split Tube Furnace with 50mm OD

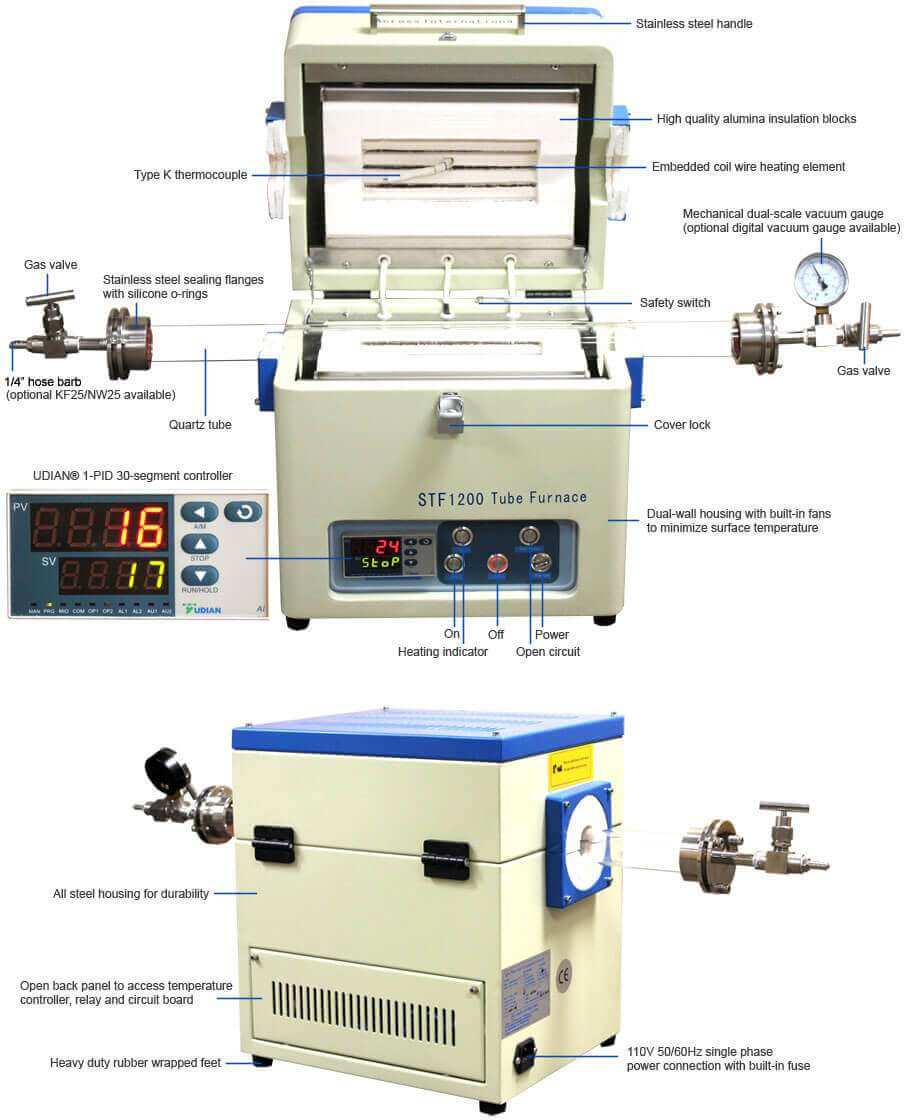

TMAX-50mmfurnace portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.


split tube furnaces



Features

1.Compact, portable and lightweight design.
2.Split furnace chamber for fast and easy tube access.
3.Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
4.Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5.Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

6.Long life type K thermocouple.


 Tube size

 50mm OD x 700mm length
 It can be customized

 Maximum working temperature

 1200°C

 Constant working temperature

 1100°C

 Minimum working temperature

 Ambient

 Constant working temperature under vacuum

 1000°C

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Heating element type

 Resistance coil wire

 Thermo couple type

 K

 Refractory lining

 Mitsubishi (Japan) 1500 grade fiber alumina

 Temperature controller

 Single PID, 30 segments

 Maximum heating & cooling rate

 < 30°C / min

 Heating zone length

 8"

 Constant temperature zone length

 3"

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,two valves and four thermal ceramic blocks.

 Electrical requirements

 110VAC,  50/60 Hz single phase, 1500 watts

 Gas inlet/outlet

 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)

 Unit dimensions

 27 x 13 x 16" (WxDxH)

 Unit weight

 55 Lb


Coin cell Pilot machine
