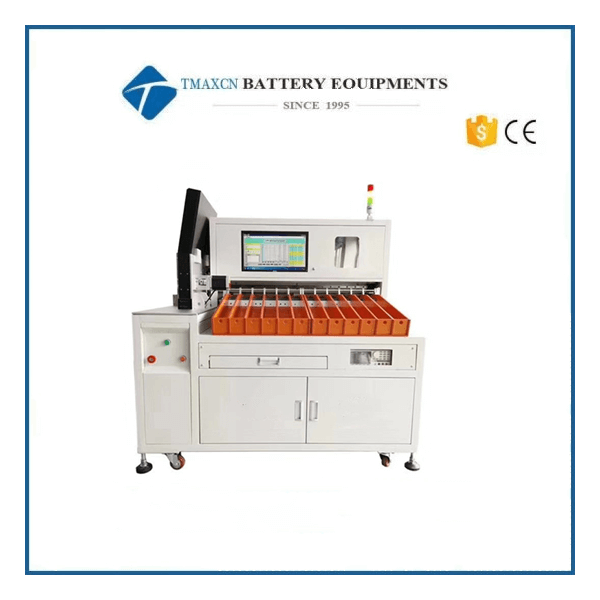

12 Channels Automatic Battery Sorting Sorter Machine for 18650 or 26650 Cylindrical Battery
Model Number:
TMAX-FN-12Type:
AutomaticNet Weight:
250kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
6 Channels 18650/26650/32650 Li-ion Battery Cells Testing &Sorting MachineNext:
22 Channel 18650 26650 21700 32650 Cylindrical Battery Sorter for Battery Pack Assembly

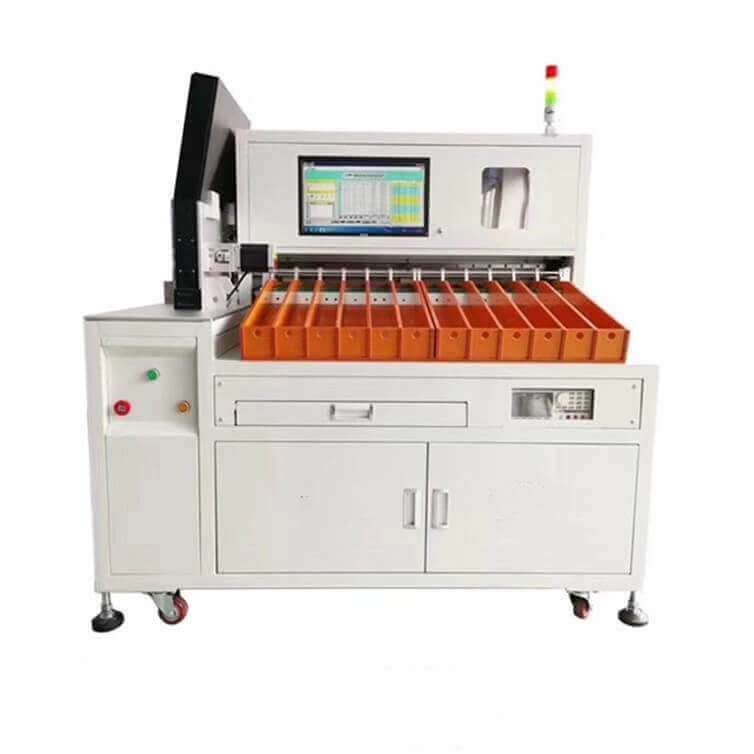

12 Channels Automatic Battery Sorting Sorter Machine for 18650 or 26650 Cylindrical Battery
FEATURE

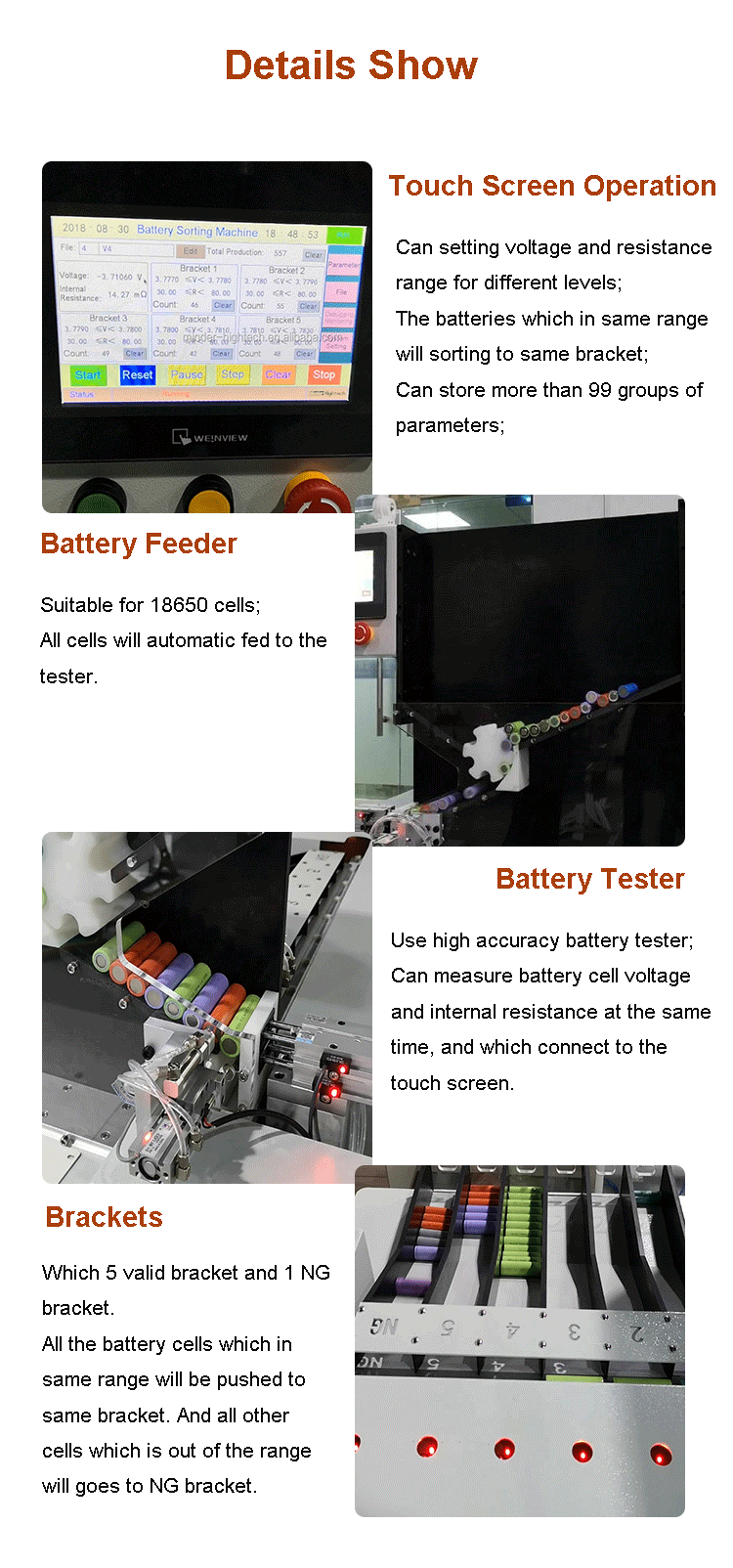

Cylindrical battery sorter is a test and sorting equipment for the parameters of internal resistance and voltage of cylindrical battery. It has a high precision automatic test system for internal resistance and voltage. According to the value of internal resistance and voltage set by computer software, the battery is sent to the designated gear. The system can mostly achieve 5-20 level sorting. This equipment can test and assemble about 4000-8000 cores per hour, and its structure design is simple and generous, and its performance is stable. So far it is one of the cost-effective sorting equipment in the market,
ADVANTAGE
1. Automatic sorting of voltage and internal resistance of 18650 batteries or size cylindrical batteries.
2. It can be divided into 2, 10 and 20 grades to meet the needs of different customers.
3. Voltage sorting can set the upper and lower limits of voltage by itself.
4. According to different models, the upper and lower limits of internal resistance can be set up with multiple gears, the group values can be adjusted, and the adjustment methods are varied, which is suitable for people with various operating habits.
5. Imported voltage internal resistance tester is used with high precision, high speed and matching.
6. Integrated PC, mature management; PC display, intuitive and clear atmosphere;
7. Professional control card, stable and reliable;
SPECIFICATION
Input Power AC 220V 50HZ Compressed Air 0.5-0.8Mpa Size 1460x930x1680mm Internal Resistance Tester Hioki3561 or HK3561 Internal Resistance Measurement Test Range:0-60mΩ Accuracy: +/- 0.5% rdg Resolution: 0.01 milliohm Voltage Test Test range: 0-10V Accuracy:±0.015% rdg Resolution: 0.01mV Production Efficiency 5500-6000 pcs/h Controller High Definition Screen PC + Industrial Control Sorting Speed 80-95PPM Cylinder AITRAC/CHELIC/SMC/CKD/HITOP
