100-400 mm Width electric electrode heat roller press machine for pouch cell research

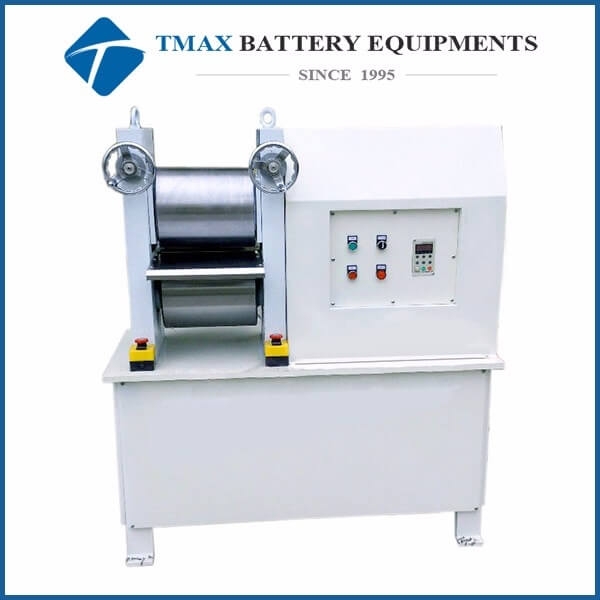

1 Electrode heat roller press machine . It has dual rollers of 100-200mm dia. x 100-400mm width and dual grade micrometer. This lab Calender Machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

2 This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.

3  Such a roller can be heated up to 150℃-200℃.

SPECIFICATIONS:

Roller Dimensions	TMAX-GYJ-100-100   100mm(Dia.) x 100mm(W) TMAX-GYJ-100-200   100mm(Dia.) x 200mm(W) TMAX-GYJ-100-400   100mm(Dia.) x 400mm(W) TMAX-GYJ-150-200   150mm(Dia.) x 200mm(W) TMAX-GYJ-150-400   150mm(Dia.) x 400mm(W) TMAX-GYJ-200-200   200mm(Dia.) x 200mm(W) TMAX-GYJ-200-400   200mm(Dia.) x 400mm(W)
Working Voltage	110V - 240V AC, 50/60Hz, automatic switch for worldwide use
Structure	Heavy duty steel frame, gears, and handle Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm Maximum

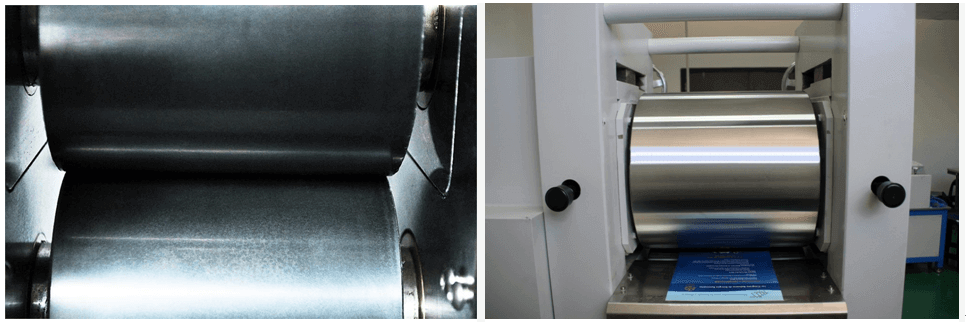

Roller	1. Roller diameter tolerance: 0.004mm 2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating 3. Rolling Speed: 0-120mm/s adjustable
Roller Surface Hardness	62 HRC  Never roll materials with hardness > 50HRC
Compliance	CE Certificate
Heating temperature	RT-120℃, can customized to 150℃-200℃
Warnings	1. Never roll materials with hardness > 50HRC 2. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.  3. Multi-step thickness calibration: When calibrating the thickness, make increment/decrement of 0.1mm or 20% of sheet thickness each time. 4. Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion 5. This rolling machine can be used under Ar gas.
