-10℃-75℃ Low Temperature Biochemical Incubator Refrigerated Incubator
Model Number:
TMAX-LBICompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Intelligent Mold Incubator for Microbial CultivationNext:
Laboratory Biochemical Incubator with LCD Display&RS485 Interface

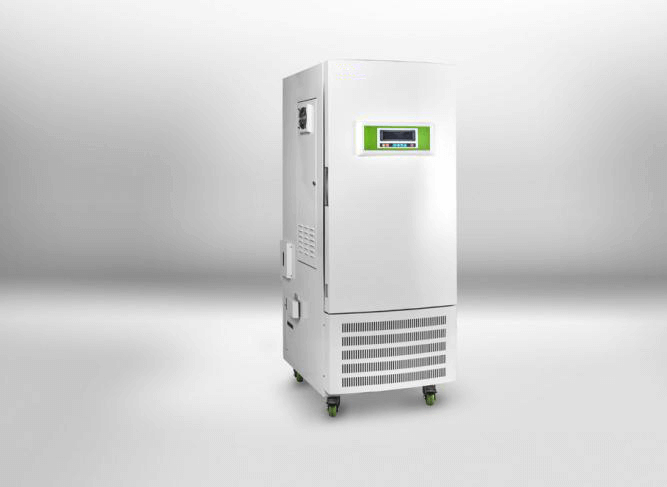

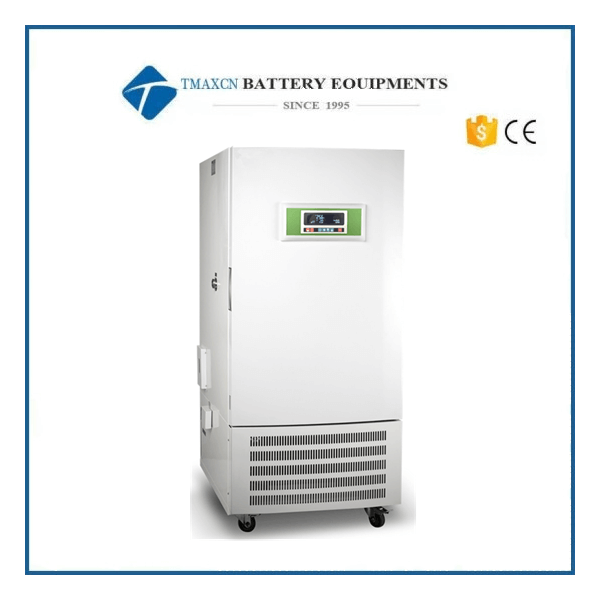

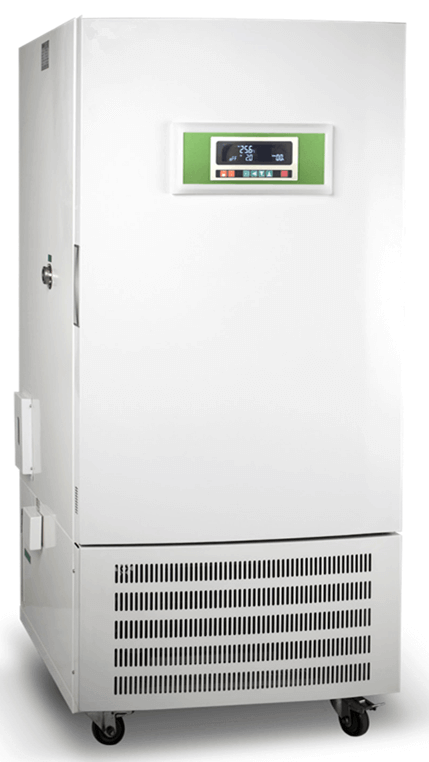

-10℃-75℃ Low Temperature Biochemical Incubator Refrigerated Incubator
Biochemical incubator is suitable for environmental protection, health and epidemic prevention, drug inspection, agricultural and livestock, aquatic and other scientific research, universities, production departments. It is a special constant temperature equipment for water analysis and BOD determination, culture, preservation, plant cultivation and breeding of bacteria, mould and microorganism.
Features
1.The chamber structure adopts curved arc design, with novel and beautiful shape.
2.The workroom is made of mirror stainless steel plate, and the shelf can be assembled freely, which is convenient for cleaning in the workroom.
3.The working room is equipped with a power socket and a lighting device to facilitate the observation of the culture in the working room.
4.A fan is installed in the working room to form forced convection, which makes the temperature in the working room more uniform.
5.The surface of the outer box is sprayed with plastic. The whole machine is beautiful, easy to use and maintain.

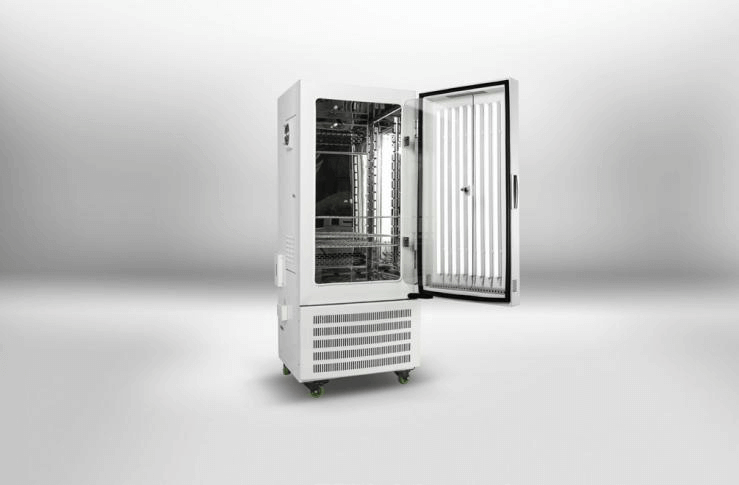

6.The door of the incubator is a double door design, the inner door is toughened glass, which can directly observe the conditions of the culture in the working room, and the outer door is sealed by magnetic door, with good sealing performance.
7.It has the function of hot and cold automatic control (double refrigeration system).
8.The control panel is installed on the external door, which is convenient for the operator to operate.
9.The temperature control adopts the new upgraded type, large LCD display, menu operation, multi-stage program control technology, with high precision and no overshoot.
10.The USB conversion interface is used to connect the computer, display and print the temperature and time data with the computer, which provides a strong guarantee for the data storage and playback in the test process.
11.External printer records temperature and time data in real time.
12.Equipped with leakage protector.
13.It is equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) when the main temperature control is out of control.
SPECIFICATIONS
Model |
LBI-175-N |
LBI-275-N |
LBI-375-N |
LBI-475-N |
LBI-800-N |
LBI-1075-N |
Chamber Volume |
175L |
275L |
375L |
475L |
800L |
1075L |
Temperature Range |
-10~75 ℃ |
|||||
Display Resolution |
0.1℃ |
|||||
Temperature Stability |
±0.5℃ |
|||||
Temperature Uniformity |
±1℃ |
|||||
Timing Range |
0~99h59min |
|||||
Power Rating |
300W |
350W |
450W |
500W |
800W |
1000W |
Refrigerant |
R134a |
|||||
Power Supply |
AC 220V±10%,50Hz±2% |
|||||
Continuous Operation |
Long continuous operation |
|||||
Exterior Size(W×D×H)cm |
61×62×150 |
74×71×157 |
75×75×173 |
86×75×182 |
113×93×198 |
101×90×224 |
Chamber Size(W×D×H)cm |
45×42×93 |
58×51×93.5 |
59×55×116 |
70×55×125 |
96.5×61×137 |
95×70×160 |
Net/Gross weight(kg) |
75/115 |
85/128 |
93/137 |
105/147 |
175/240 |
205/290 |
Shelves(standard/maximum) |
2/8 |
3/13 |
3/15 |
3/16 |
3/18 |
3/20 |
Optional Parts |
1.Φ25mm(50mm)test hole 2. 7-inch real color touch screen PLC controller |
