Vacuum Planetary Mixer

1-10L Vacuum Mixer for Laboratory Battery Making

  • Model Number:

    TMAX-SVM-1L
  • Input Power:

    750W
  • Dimension(L*W*H):

    600*500*300mm
  • Net Weight:

    60kg
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

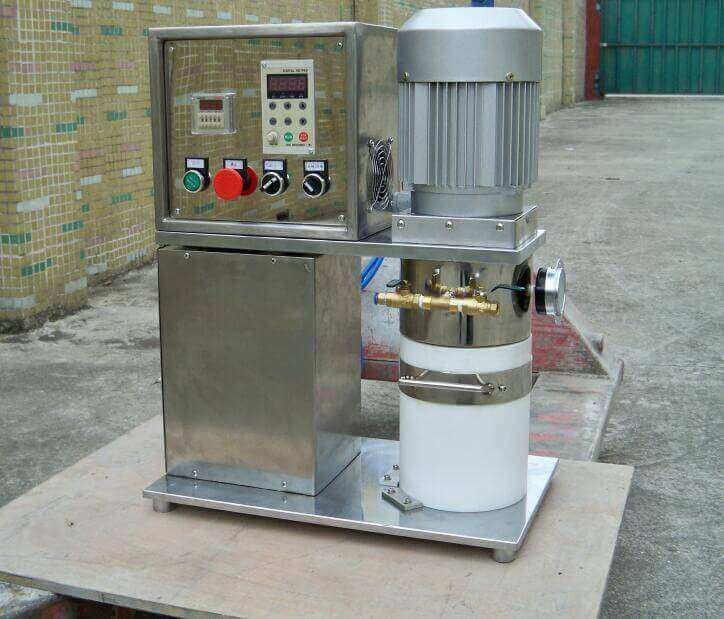

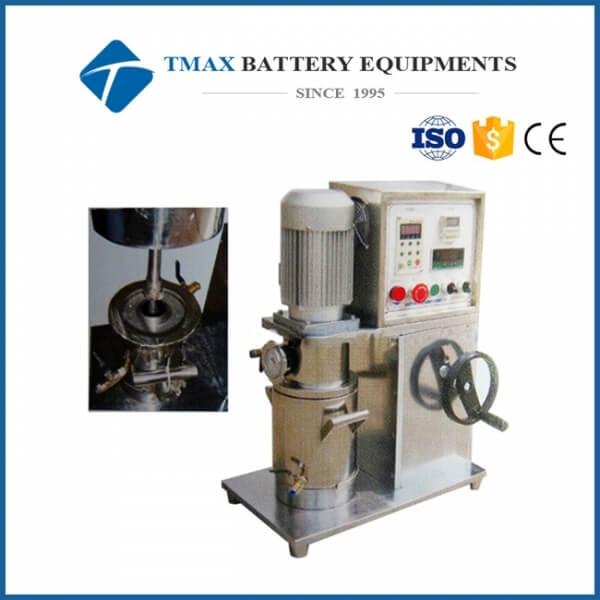

1-10L Vacuum Mixer for Laboratory Battery Making


1 This SVM-1L system Vacuum Mixer is a high efficient equipment with vacuum mixing , it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.



2 The vacuum mixer is with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.



3 The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.



4 The  TMAX-SVM-1L system vacuum mixing machine is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity. Choosing your ideal planetary mixer here.


SPECIFICATIONS:

Model

Small Size Vacuum Mixer  TMAX-SVM-1L

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

750W

Warranty

One Year limited warranty with lifetime support

Mixing speed

0-2800 r/min, Through the inverter speed control

Effective volume

1L, Can also choose 500ml Mixing Jar

Mixing barrel opening mode

Arms straight line guide rail hand cover rising, without connecting air compressor

Mixing barrel size

Φ100mm(Diameter)*140mm(Hight)

Mixing time set

0-99H can be set, with auto stop when time reach

Weight

About 60kg

Dimension(H*L*W)

600*500*300mm, 24″*20″*12″

Advantage

Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.

With time and temperature setting function,

Container is opened or closed by electric Hand (no air pump is required any more)
