Tab welding machine

Automatic Tab welding machine

  • Model Number:

    TMAX-GA-LS130

  • Type:

    Automatic

  • Input Power:

    70W

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Place of Origin:

    China

  • Update:

    Optional

  • Shipping Port:

    Xiamen Port

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    20 days
Product Details

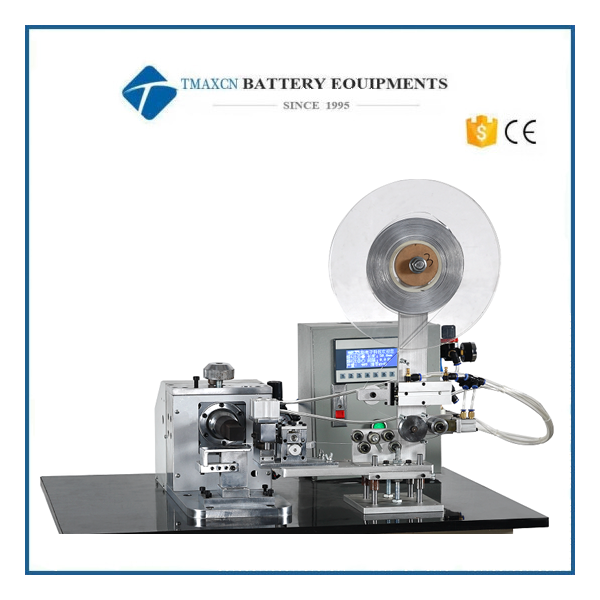

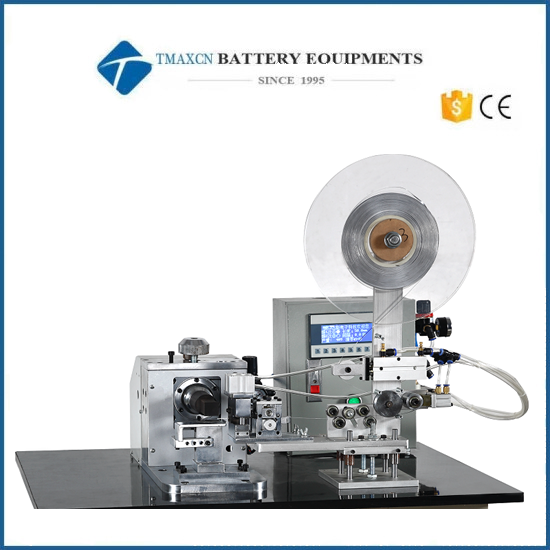

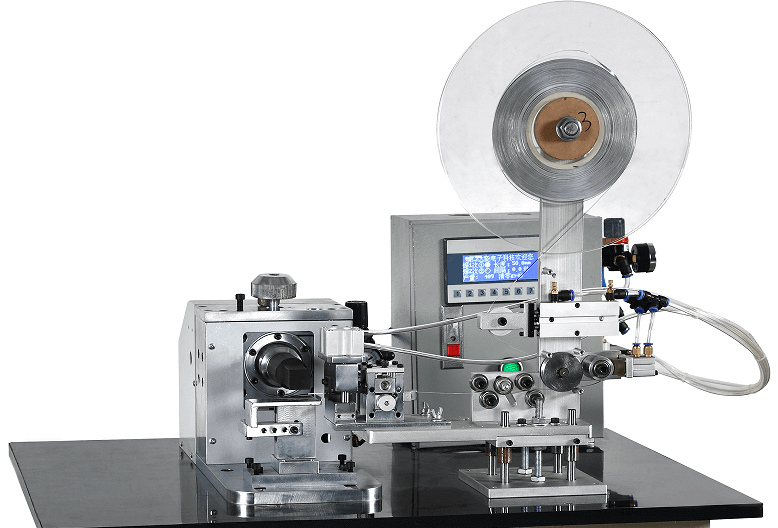

Automatic Tab welding machine


Ⅰ、Introduction

TMAX-GA-LS130 is automatically controlled by PLC to realize the functions of fixed length belt feeding, belt cutting, glue pasting, cover plate feeding, welding instruction and so on; It is the best choice for you to improve work efficiency and product quality with convenient use, simple maintenance and stable performance.

Thank you again for your use. It is our duty and mission to serve you wholeheartedly.


Ⅱ、Technical Parameter

Project

Parameter

Specification of Aluminum / Nickel Strips

Thickness

0.1-0.2mm

Width

3-4mm

(other specifications need to be customized)



Feeding

Length

1-60mm

 (extension can be customized)

Length Error

±0.5mm

Efficiency

25-40 PCS / min

(related to the speed of manual pole feeding)



Electrical Parameters

Power Supply Voltage

1P 220V

Input Power

70W

Input Air Pressure

0.4-0.7Mpa flow 20L / min, utilization rate 50%



Product Use Environment

Ambient Temperature

-5～35℃

Relative Humidity

5-75%HR

Power Supply

AC220V 1P

Voltage fluctuation is less than±10%

Power supply power > 1KVA



Maintenance

Failure Rate

1-3%

Design Service Life

5 years





Ⅲ、Constituent

The machine is composed of unwinding, buffering, shaping, glue wrapping, belt feeding, belt cutting, electrical control and other mechanisms. The list of accessories of each mechanism is as follows:

NO.

Mechanism

Name

Part Name

Model

Manufacturer

Quantity

Warranty Period

1

Electric Control Panel

PLC

DVP16ES2

Delta

1 set

1 year

2

Text Display

MD306

Master

1

1 year

3

Switching Mode Power Supply

S-50-24

Delta

1

1 year

4

Relay

MY4NJ

OMRON

2

1 year

5

Stepping Driver

2H45B

Reyes

1 set

1 year

6

Feeding System

Rubber Coated Die

Non Standard

De Ruicheng

1 set

1 year

7

Glue Feeding System

Non Standard

De Ruicheng

1 set

1 year

8

Cutter

White Steel

De Ruicheng

1 pair

1 year

9

Guide

12

Shangyin

7 sets

1 year

10

Pneumatic System

Cylinder

SDA32-05

Stars

1

1 year

11

Cylinder

SDA25-10

Stars

1

1 year

12

Cylinder

TDA10-10

Stars

1

1 year

13

Cylinder

CDJ2B16-60

Stars

2

1 year

14

Cylinder

CDJ2B10-15

Stars

3

1 year

15

Cylinder

TDA10-20

Stars

1

1 year

16

Pressure Relief Valve

AR-2000

Stars

1

1 year

17

Solenoid Valve

4V110-06

Stars

6

1 year

18

Mechanical System

Frame

Non Standard

De Ruicheng

1 set

1 year
